Transaxle Cooling
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

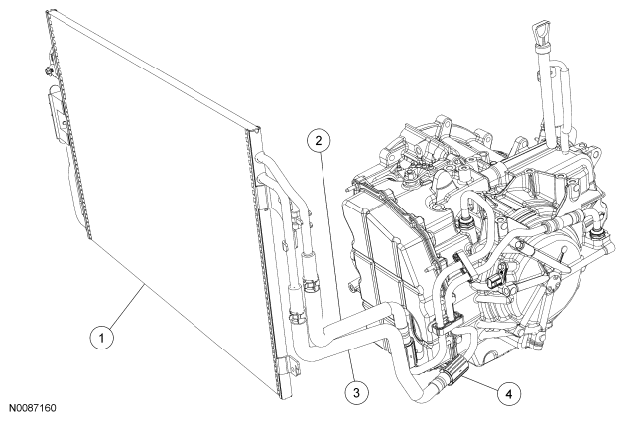

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 19712 | Transmission fluid cooler |
| 2 | 7F113 | Transmission fluid cooler outlet tube and hose assembly |
| 3 | 7F112 | Transmission fluid cooler inlet tube and hose assembly |
| 4 | 7J081 | Transmission fluid cooler tube secondary latches |
When internal wear or damage has occurred in the transaxle, metal particles, clutch plate material or band material may have been carried into the torque converter and transaxle fluid cooler. These contaminants are a major cause of recurring transaxle troubles and must be removed from the system before the transaxle is put back into use. Refer to TRANSMISSION FLUID COOLER BACKFLUSHING AND CLEANING .
