Solenoid Body Leadframe-to-Output Shaft Speed (OSS) Sensor Internal Circuit Diagram

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

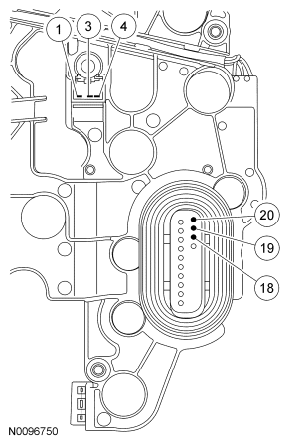

Fig 1: Identifying Solenoid Body Leadframe-To-Output Shaft Speed (OSS) Sensor Connector Terminals
G06376628Courtesy of FORD MOTOR CO.
SOLENOID BODY LEADFRAME MAIN CONNECTOR PIN NUMBER REFERENCE

Solenoid Body Leadframe Main Connector Pin Number Output Shaft Speed (OSS) Sensor Pin Number Circuit Function
20 1 Transmission Range (TR)/Output Shaft Speed (OSS) sensor ground circuit
19 3 OSS  sensor signal
18 4 TR  /OSS  sensor power supply
