Output Shaft Speed (OSS) Sensor

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

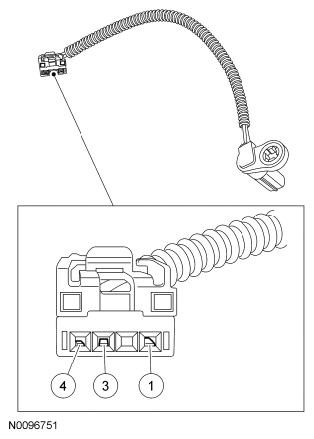

Fig 1: Identifying Output Shaft Speed (OSS) Sensor
G06376629Courtesy of FORD MOTOR CO.
PIN NUMBER REFERENCE

Pin Number Circuit Function
1 Output Shaft Speed (OSS) sensor ground
3 OSS  signal
4 OSS  sensor power
