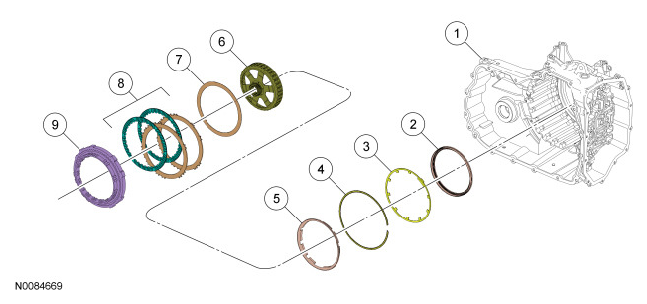

Intermediate (2, 6) Clutch Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7005 | Transaxle case |
| 2 | 7E005 | Intermediate clutch piston |
| 3 | 7B070 | Intermediate clutch piston return spring |
| 4 | 7D483 | Intermediate clutch piston return spring snap ring |
| 5 | 7E005 | Intermediate clutch apply ring |
| 6 | 7A019 | Rear planetary sun gear and shell assembly |
| 7 | 7E085 | Intermediate clutch wave spring |
| 8 | 7B164 | Intermediate clutch assembly |
| 9 | 7A089 | Low/One-Way Clutch (OWC) |
