Differential Exploded View

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

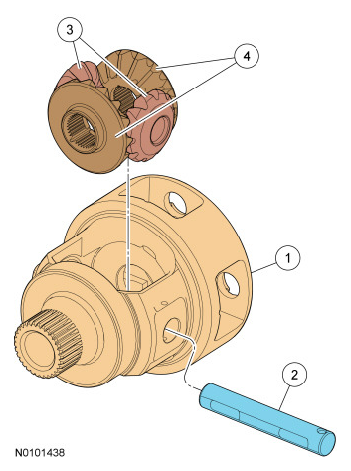

Fig 1: Exploded View Of Differential
G06376516Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 7F465 Differential housing
2 - Pinion shaft
3 - Pinion gears
4 - Side gears
