Main Control Valve Body
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

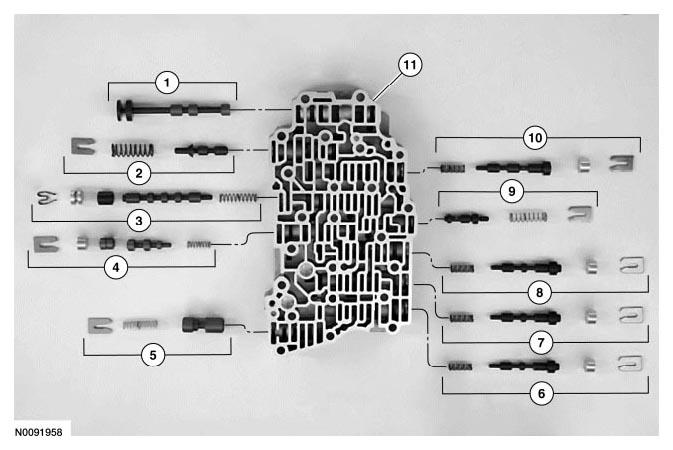

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7C389 | Manual valve |
| 2 | 7G473 | Solenoid pressure regulator valve assembly |
| 3 | 7G179 | Clutch bypass valve |
| 4 | 7G307 | Torque Converter Clutch (TCC) regulator valve |
| 5 | 7B200 | Control pressure regulator |
| 6 | 7D102 | Direct (3, 5, R) clutch regulator valve |
| 7 | 7D102 | Intermediate (2, 6) clutch regulator valve |
| 8 | 7D102 | Forward (1, 2, 3, 4) clutch regulator valve |
| 9 | 7J187 | Forward (1, 2, 3, 4) clutch latch valve |
| 10 | 7D102 | Low reverse/overdrive (4, 5, 6) clutch regulator valve |
| 11 | 7A100 | Valve body |
