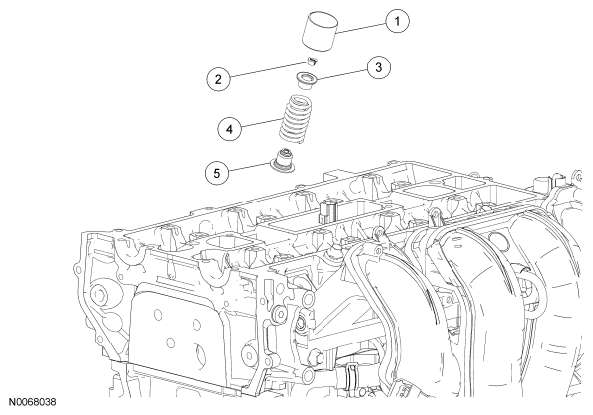

Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. PART NUMBER REFERENCE
| Item |
Part Number |
Description |
| 1 |
6500 |
Valve tappet (16 required) |
| 2 |
6518 |
Valve collet (16 required) |
| 3 |
6514 |
Valve spring retainer (16 required) |
| 4 |
6513 |
Valve spring (16 required) |
| 5 |
6517 |
Valve seal (16 required) |
- For additional information, refer to the procedures.
