Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATION
| Support Bar, Engine 303-F072 |

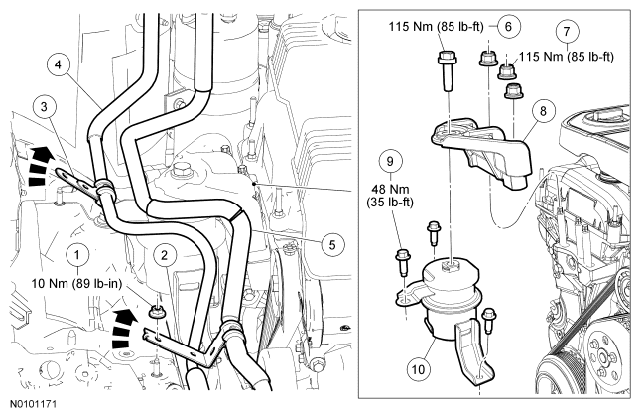

PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C tube bracket nut |
| 2 | 19A579 | A/C tube bracket |
| 3 | 19A579 | A/C tube bracket |
| 4 | 19835 | A/C tube |
| 5 | 12D305 | A/C tube |
| 6 | W714723 | Engine mount bracket bolt |
| 7 | N807144 | Engine mount bracket nut (3 required) |
| 8 | 6A094 | Engine mount bracket |
| 9 | W500233 | Engine mount bolt (3 required) |
| 10 | 6068 | Engine mount |
