Cylinder Head
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

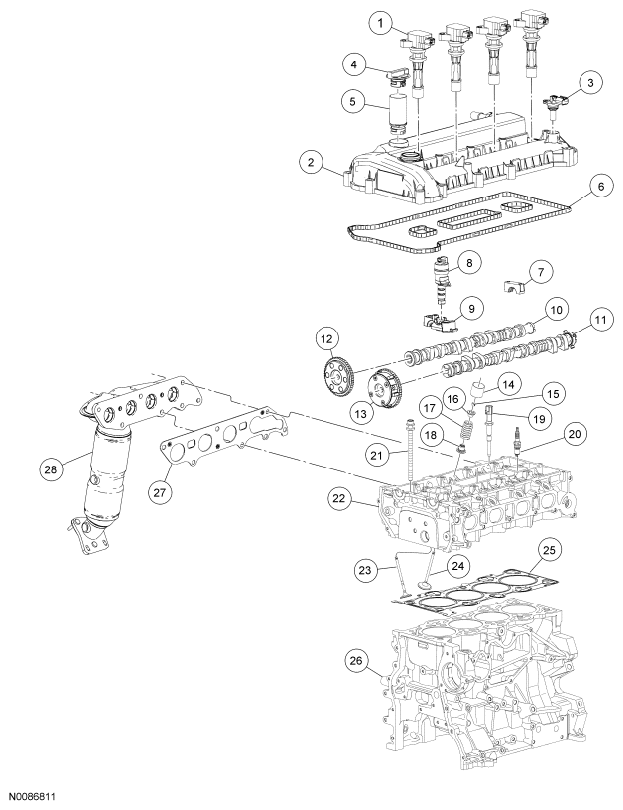

PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 12A366 | Coil-on-plug assembly |
| 2 | 6M293 | Valve cover |
| 3 | 12K073 | Camshaft Position (CMP) sensor |
| 4 | 6766 | Oil filler cap |
| 5 | 6765 | Oil fill extension |
| 6 | 6M293 | Valve cover gasket |
| 7 | 6A284 | Camshaft bearing cap |
| 8 | 6M280 | Variable Camshaft Timing (VCT) solenoid |
| 9 | 6A258 | Camshaft bearing cap |
| 10 | 6A272 | Camshaft (exhaust) |
| 11 | 6A271 | Camshaft (intake) |
| 12 | 6C251 | Camshaft sprocket |
| 13 | 6C525 | VCT actuator |
| 14 | 6500 | Valve tappet (16 required) |
| 15 | 6518 | Valve collet (16 required) |
| 16 | 6514 | Valve spring retainer (16 required) |
| 17 | 6513 | Valve spring (16 required) |
| 18 | 6A517 | Valve stem seal (16 required) |
| 19 | 6G004 | Cylinder Head Temperature (CHT) sensor |
| 20 | 12405 | Spark plug (4 required) |
| 21 | 6065 | Cylinder head bolt (10 required) |
| 22 | 6049 | Cylinder head |
| 23 | 6505 | Exhaust valve (8 required) |
| 24 | 6507 | Intake valve (8 required) |
| 25 | 6051 | Head gasket |
| 26 | 6010 | Cylinder block |
| 27 | 9448 | Catalytic converter gasket |
| 28 | 5E211 | Catalytic converter |
