Coolant Pump Belt and Pulley
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

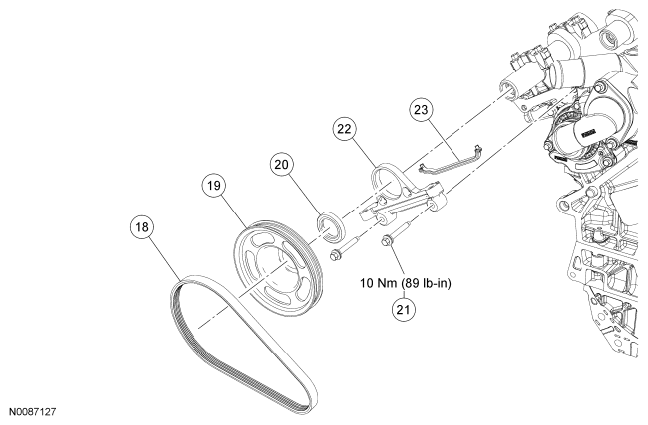

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 18 |
8K543 |
Coolant pump drive belt |
| 19 |
6A359 |
Coolant pump drive pulley |
| 20 |
- |
Camshaft oil seal |
| 21 |
W701242 |
Camshaft oil seal retainer bolt (2 required) |
| 22 |
6B293 |
Camshaft oil seal retainer |
| 23 |
6B295 |
Camshaft oil seal retainer gasket |
