Exhaust Manifold: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

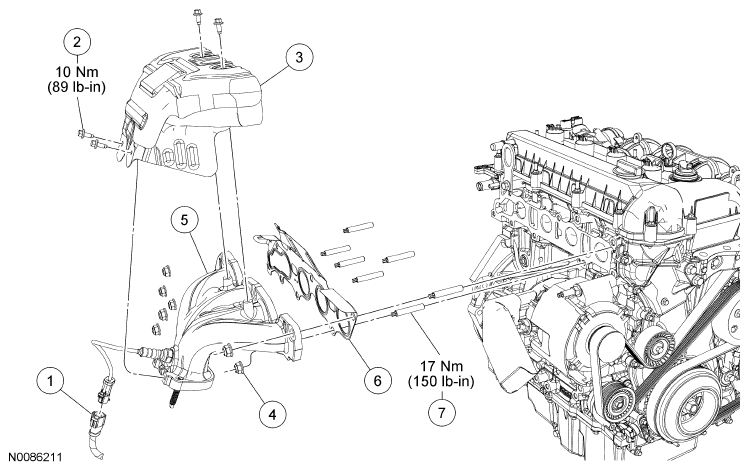

PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Heated Oxygen Sensor (HO2S) electrical connector (part of 12C508) |
| 2 | W713299 | Exhaust manifold heat shield bolt (4 required) |
| 3 | 9N454 | Exhaust manifold heat shield |
| 4 | W713652 | Exhaust manifold nut (7 required) |
| 5 | 9430 | Exhaust manifold |
| 6 | 9448 | Exhaust manifold gasket |
| 7 | W704474 | Exhaust manifold stud (7 required) |
