Removal and Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING -- ESCAPE, ESCAPE HYBRID, MARINER & MARINER HYBRID .
  2. Install the Engine Support Bar.

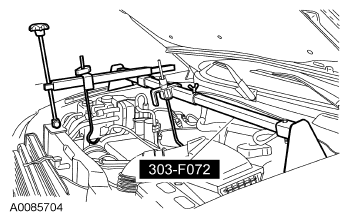

    Fig 1: Installing Engine Support Bar
    G06095022Courtesy of FORD MOTOR CO.
  3. Remove the engine mount bracket bolt.
    • To install, tighten to 115 Nm (85 lb-ft).
  4. Use the Engine Support Bar to raise the engine 25 mm (0.98 in).
    Fig 2: Installing Engine Support Bar
    G06095022Courtesy of FORD MOTOR CO.
  5. Remove the 3 nuts and the engine mount bracket.
    • To install, tighten to 115 Nm (85 lb-ft).
  6. Remove the 3 bolts and the engine mount.
    • To install, tighten to 48 Nm (35 lb-ft).
  7. To install, reverse the removal procedure.
