Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

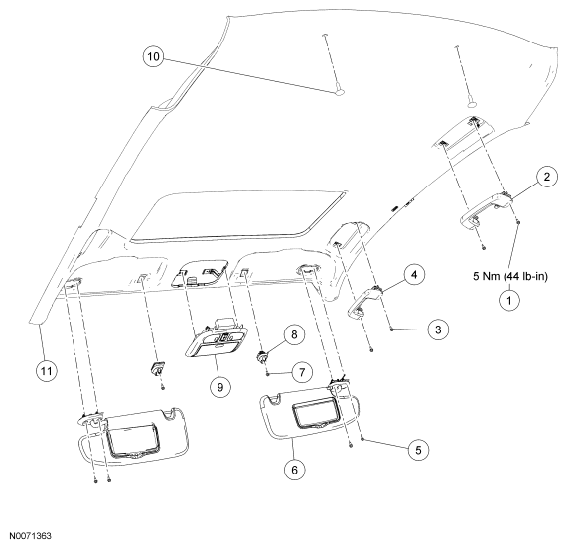

Headliner with moonroof shown in illustration, headliner without moonroof similar.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W504265 | Assist handle bolt (2 required) |
| 2 | 31406B RH/31407B LH | Rear assist handle |
| 3 | W504265 | Assist handle bolt (2 required) |
| 4 | 31406A RH/31407A LH | Front assist handle |
| 5 | W505003 | Sun visor screw (2 required) |
| 6 | 04104 RH/04105 LH | Sun visor |
| 7 | W505003 | Sun visor arm clip screw |
| 8 | 04132 | Sun visor arm clip |
| 9 | 519A70 | Overhead console |
| 10 | W709571 | Pushpin retainer (2 required) |
| 11 | 51916 | Headliner |
