Removal and Installation

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door module. For additional information, refer to Removal and Installation .
Remove the access hole plug.

Fig 1: Locating Access Hole Plug
Courtesy of FORD MOTOR CO.
Remove the bolt and the screw.

Fig 2: Locating Bolt & Screw
Courtesy of FORD MOTOR CO.
Remove the inner beltline weatherstrip.

Fig 3: Locating Inner Beltline Weatherstrip
Courtesy of FORD MOTOR CO.
Remove the screw and the outer beltline weatherstrip.

Fig 4: Locating Screw & Outer Beltline Weatherstrip
Courtesy of FORD MOTOR CO.
Position the rear window glass run aside.

Fig 5: Positioning Rear Window Glass Run Aside
Courtesy of FORD MOTOR CO.
Remove the rear door fixed window glass assembly.

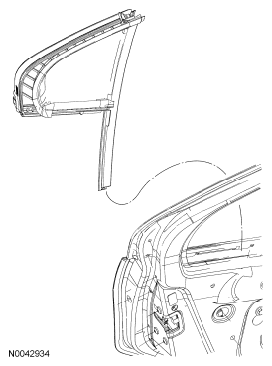

Fig 6: Identifying Rear Door Fixed Window Glass Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
