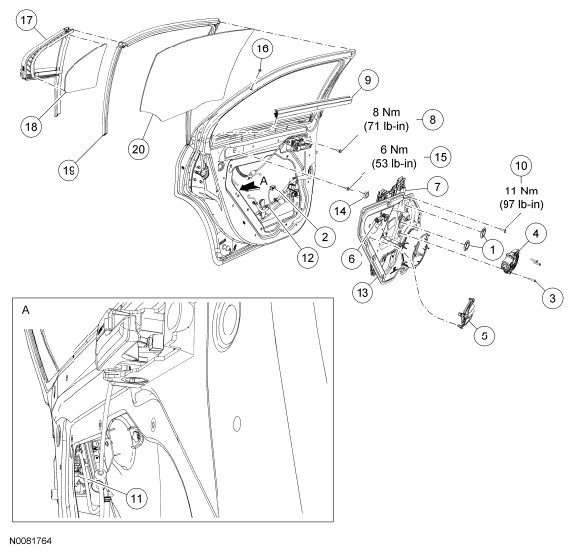

Glass, Frames and Mechanisms - Exploded View, Rear Door
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 378377 | Access hole plugs |
| 2 | 14489 | Electrical connector |
| 3 | W505966-S | Screw (3 required) |
| 4 | 5423395 LH/5423394 RH | Window regulator motor |
| 5 | 5402010 | Wiring harness cover plate |
| 6 | - | Clip |
| 7 | 5427001 LH/5427000 RH | Window regulator |
| 8 | - | Interior door handle bolt |
| 9 | 5425861 LH/5425860 RH | Interior door window glass belt molding |
| 10 | W505421-S | Door module bolt (10 required) |
| 11 | 14A464 | Rear door latch electrical connector |
| 12 | - | Wiring harness retainer |
| 13 | 54235A89 LH/54235A88 RH | Rear door module |
| 14 | W651013-S | Access hole plug |
| 15 | W506410-S | Window regulator glass clamp bolt (2 required) |
| 16 | N811106-S | Upper C-pillar rear glass run bolt |
| 17 | 5429905 LH/5429904 RH | Rear door fixed glass weatherstrip |
| 18 | 5426871 LH/5426870 RH | Rear door fixed glass |
| 19 | 5425767 LH/5425766 RH | Rear door glass top run |
| 20 | 5425713 LH/5425712 RH | Rear door window glass |
- For additional information, refer to the appropriate procedure(s).
