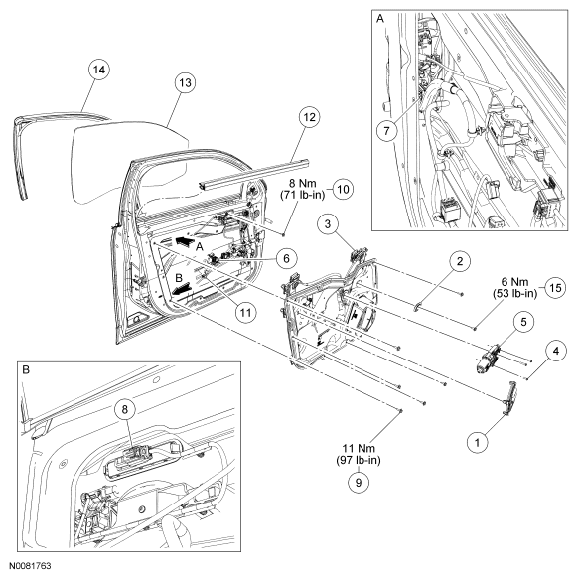

Glass, Frames and Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 5402010 | Wiring harness cover plate |
| 2 | 378377-S | Access hole plug |
| 3 | 5423201 LH/5423200 RH | Window regulator |
| 4 | W505966-S | Window motor screw (3 required) |
| 5 | 5423395 LH/5423394 RH | Window motor |
| 6 | 14489 | Window motor electrical connector |
| 7 | 14A464 | Door latch electrical connector |
| 8 | 14A464 | Keypad latch electrical connector |
| 9 | W505421-S | Door module bolt (10 required) |
| 10 | W706476 | Interior door handle bolt |
| 11 | - | Wiring harness retainer |
| 12 | 5421457 LH/5421456 RH | Interior door window glass belt molding |
| 13 | 5421411 LH/5425712 RH | Front door window glass |
| 14 | 5421597 LH/5421596 RH | Door window glass top run |
| 15 | 378377-S | Window glass clamp bolt (2 required) |
- For additional information, refer to the appropriate procedure(s).
