Inertia Fuel Shutoff (IFS) Switch: Notes

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

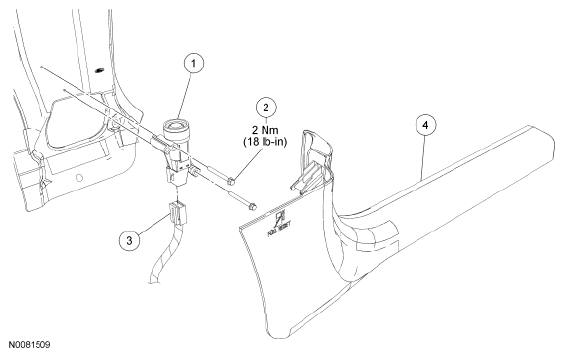

Fig 1: Inertia Fuel Shutoff Switch With Torque Specifications
G06271091Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 9341 Inertia Fuel Shutoff (IFS) switch
2 W504148 IFS  bolt (2 required)
3 14489A IFS  switch electrical connector
4 5413200 RH front door scuff plate
