Bumper - Exploded View, Rear: MKZ
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

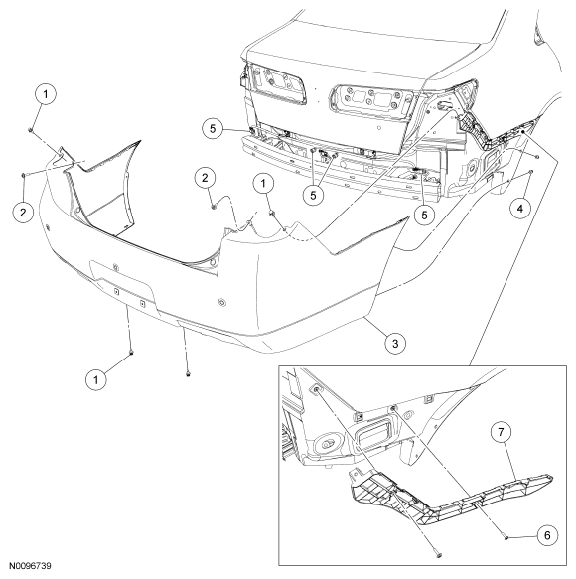

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | N807389 | Rear bumper cover pin-type retainers (4 required) |
| 2 | N806034 | Rear bumper cover screws (2 required) |
| 3 | 17K835 | Rear bumper cover |
| 4 | N807389 | Fender splash shield pin-type retainer (4 required) |
| 5 | - | Rear parking assist electrical connectors (part of 14N139) |
| 6 | N806034 | Rear bumper cover bracket screw (4 required) |
| 7 | 17D948 LH/17D949 RH | Rear bumper cover bracket |
- For additional information, refer to the appropriate procedure(s).
