Fuel Rail
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

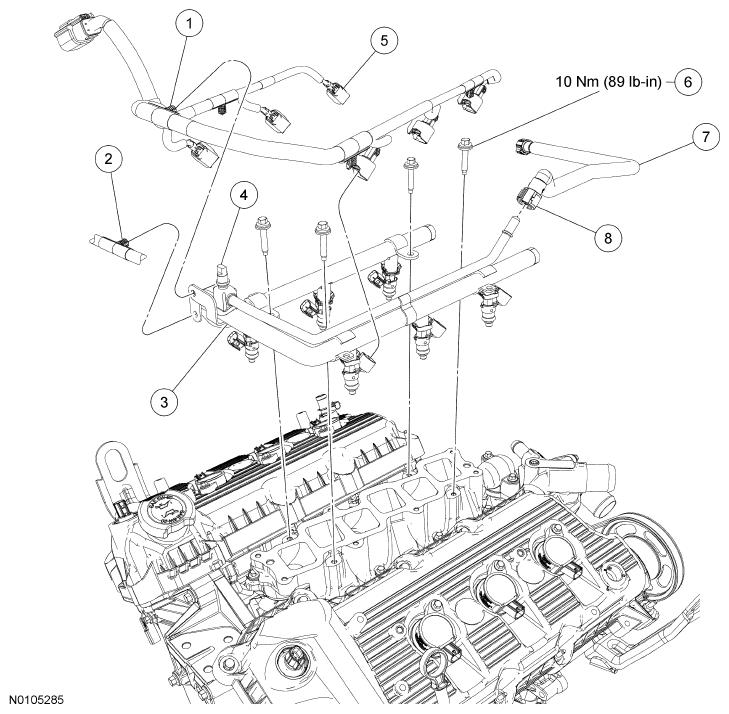

Early build shown in illustration, late build similar.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel charging wiring harness pin-type retainer (part of 14A485) (5 required) |
| 2 | - | Engine wiring harness pin-type retainer (part of 12C508) |
| 3 | 9F792 | Fuel rail |
| 4 | - | Fuel rail Schrader valve (part of 9F792) (early build only) |
| 5 | - | Fuel injector electrical connector (part of 14A485) (6 required) |
| 6 | W503275 | Fuel rail bolt (4 required) |
| 7 | 9J285 | Fuel jumper tube |
| 8 | - | Fuel jumper tube-to-fuel rail quick connect coupling (part of 9J285) |
