Selector Lever Bezel: Installation

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Install the selector lever bezel on the selector lever.
- Position the override lever in the override lever guide.
- Make sure that the 3 locking tabs are locked in place.
NOTE: Be sure that the override lever is inserted in the override lever guide or the shift interlock override button will not work correctly.

NOTE: Selector lever removed for clarity.

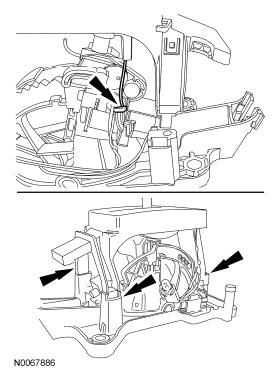

Fig 1: Identifying Selector Lever Bezel On Selector Lever
Courtesy of FORD MOTOR CO.
Connect selector lever bezel electrical connector.

Fig 2: Locating Selector Lever Bezel Electrical Connector
Courtesy of FORD MOTOR CO.
Install the selector lever knob on the selector lever and install the screws.

Fig 3: Identifying Selector Lever Knob & Selector Lever Knob Bezel
Courtesy of FORD MOTOR CO.
Slide the selector lever knob bezel up and install it on the selector lever knob.

Fig 4: Sliding Selector Lever Knob Bezel Up
Courtesy of FORD MOTOR CO.
Position the utility tray in place and connect the electrical connector.

Fig 5: Locating Electrical Connector
Courtesy of FORD MOTOR CO.
Install the utility tray on the center console.

Fig 6: Locating Utility Tray On Center Console
Courtesy of FORD MOTOR CO.
Install the center console trim panel.

Fig 7: Locating Center Console Trim Panel
Courtesy of FORD MOTOR CO.
Install the selector lever trim ring.

Fig 8: Locating Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
