Special Tool(s)
WARNING: This page is about a different car, the 2010 Lincoln MKZ and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL REFERENCE TABLE
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent diagnostic tool |

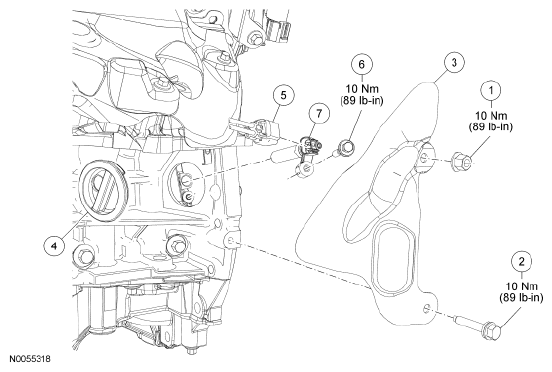

PART NUMBER DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W701542 | Heat shield nut |
| 2 | W701669 | Heat shield bolt |
| 3 | 6K342 | Heat shield |
| 4 | 6C070 | Rubber grommet cover |
| 5 | 14A464 | Crankshaft Position (CKP) sensor electrical connector |
| 6 | 6D327 | CKP sensor bolt |
| 7 | 6C315 | CKP sensor |
