Camshaft Position (CMP) Sensor: Material
WARNING: This page is about a different car, the 2010 Lincoln MKZ and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent | WSS-M2C930-A |

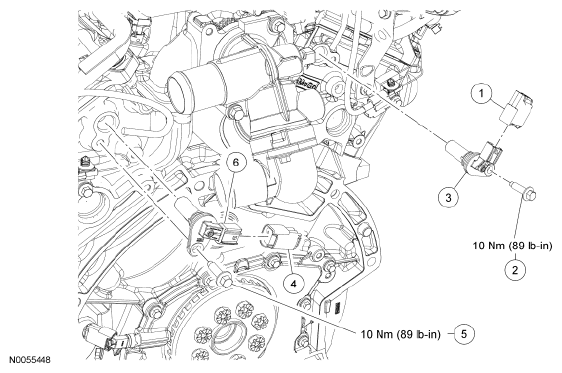

PART NUMBER DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | RH Camshaft Position (CMP) sensor electrical connector |
| 2 | W503279 | RH CMP sensor bolt |
| 3 | 6B288 | RH CMP sensor |
| 4 | 14A464 | LH CMP sensor electrical connector |
| 5 | W503279 | LH CMP sensor bolt |
| 6 | 6B288 | LH CMP sensor |
