Seat Backrest Latch - Rear: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

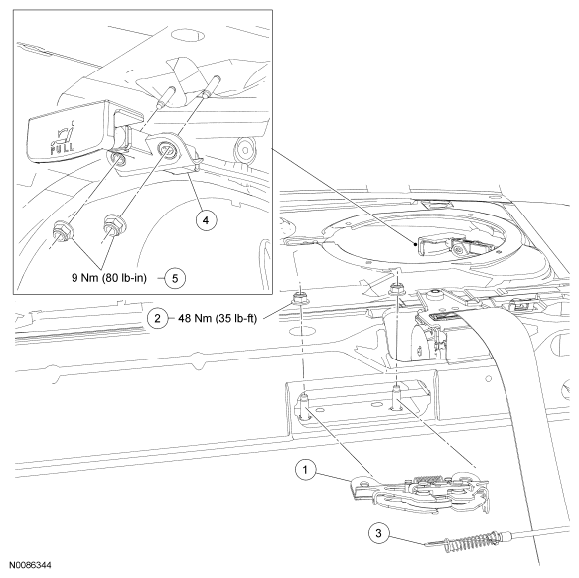

LH side shown, RH side similar.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 613D61 | Backrest latch assembly |
| 2 | W520103 | Backrest latch nut (2 required) |
| 3 | 601L60 | Latch release cable assembly |
| 4 | 624A94 | Latch release handle bracket (non-hybrid vehicles) |
| 5 | W520101 | Latch release handle bracket nuts (2 required) (non-hybrid vehicles) |
