Power Seat Track - Passenger
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

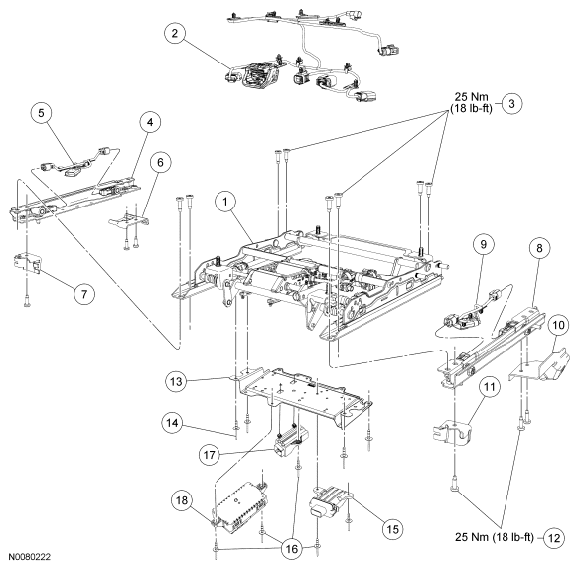

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 61710 | Seat track |
| 2 | 14A698 | Passenger seat wire harness |
| 3 | W712479 | Occupant Classification Sensor (OCS) rail-to-seat track bolts (8 required) |
| 4 | 61708 | Outboard OCS weight sensor assembly |
| 5 | 14A577 | Outboard OCS wire harness |
| 6 | 61912 | Rear outboard seat riser |
| 7 | 61912 | Front outboard seat riser |
| 8 | 61709 | Inboard OCS weight sensor assembly |
| 9 | 14A578 | Inboard OCS wire harness |
| 10 | 61913 | Rear inboard seat riser |
| 11 | 61913 | Front inboard seat riser |
| 12 | W712479 | Seat riser-to-seat track bolts (6 required) |
| 13 | 610E34 | Electrical bracket |
| 14 | 31134/31147 | Pop rivet (4 required) |
| 15 | 14B422 | Occupant Classification System Module (OCSM) |
| 16 | 31134/31147 | Pop rivets (quantity varies with seat option) |
| 17 | 14C724 | Heated seat module (if equipped) |
| 18 | 14C724 | Dual Climate Controlled Seat Module (DCSM) (if equipped) |
- For additional information, refer to the appropriate procedure(s).
