Register - RH, MKZ: Notes

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

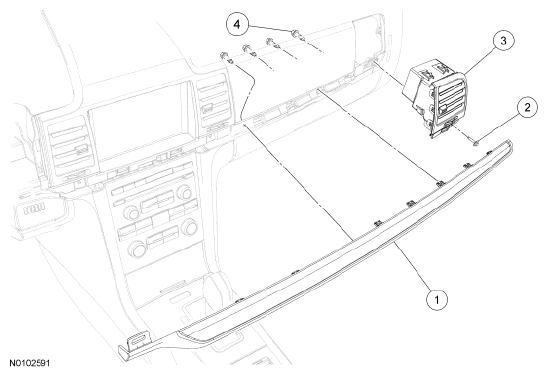

Fig 1: Identifying Register Components - RH, MKZ
G06262794Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 54044A90 RH instrument panel finish molding
2 - RH register screw
3 19893 RH register
4 W707607 RH instrument panel finish molding screw (4 required)
