Heating Ventilation Air Conditioning (HVAC) Module - MKZ: Notes

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

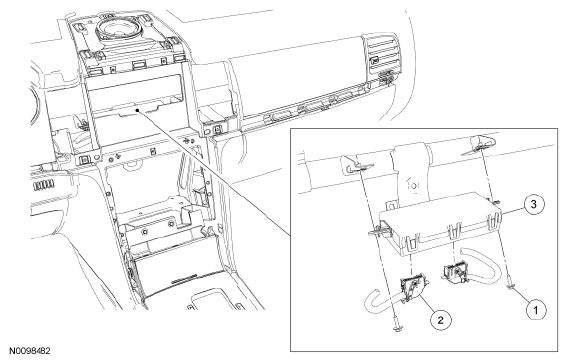

Fig 1: Identifying Heating Ventilation Air Conditioning (HVAC) Module Components - MKZ

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION TABLE

Item	Part Number	Description
1	W707628	HVAC module screw (2 required)
2	-	HVAC module electrical connector (part of 14401)
3	19980	HVAC module
