3.5L Engines

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

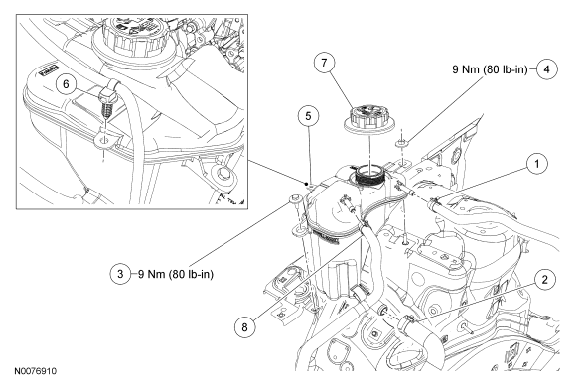

Fig 1: Degas Bottle Replacement Components With Torque Specifications (3.5L Engines)
G06272346Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 8B541 Degas bottle-to-thermostat housing hose
2 8C351 Lower degas bottle hose
3 W707398 Degas bottle-to-fender bolt
4 W709603 Degas bottle-to-fender nut
5 8A080 Degas bottle
6 14197 Wiring harness retainer (if equipped)
7 8100 Pressure relief cap
8 8276 Degas bottle-to-radiator hose
