Battery Cables - 3.5L: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

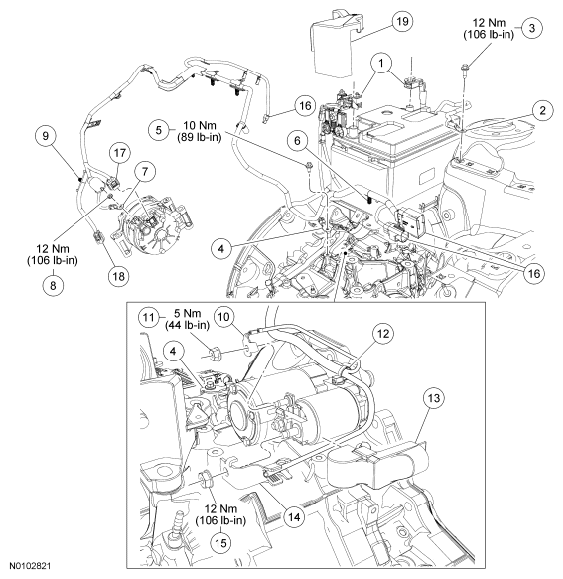

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 14B060 | Battery cables |
| 2 | - | Battery cable body ground terminal (part of 14B060) |
| 3 | W705936 | Battery cable body ground terminal bolt |
| 4 | - | Battery cable transaxle ground terminal (part of 14B060) |
| 5 | W503271 | Battery cable transaxle ground terminal bolt |
| 6 | - | Battery cable locators (2 required) (part of 14B060) |
| 7 | - | Generator B+ terminal (part of 14B060) |
| 8 | W706414 | Generator B+ terminal nut |
| 9 | - | Wiring harness retainer |
| 10 | - | Starter motor solenoid wire terminal (part of 14B060) |
| 11 | W705790 | Starter motor solenoid wire terminal nut |
| 12 | - | Battery cable locator, starter (part of 14B060) |
| 13 | 11N087 | Starter solenoid terminal cover |
| 14 | - | Battery cable starter solenoid terminal (part of 14B060) |
| 15 | W706414 | Battery cable starter solenoid terminal nut |
| 16 | - | Battery cable in-line harness electrical connector (part of 14B060) |
| 17 | - | Generator electrical connector (part of 14B060) |
| 18 | - | A/C compressor clutch field electrical connector (part of 14B060) |
| 19 | - | Battery positive terminal protective cover (part of 14B060) |
