Battery Cables - 2.5L: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

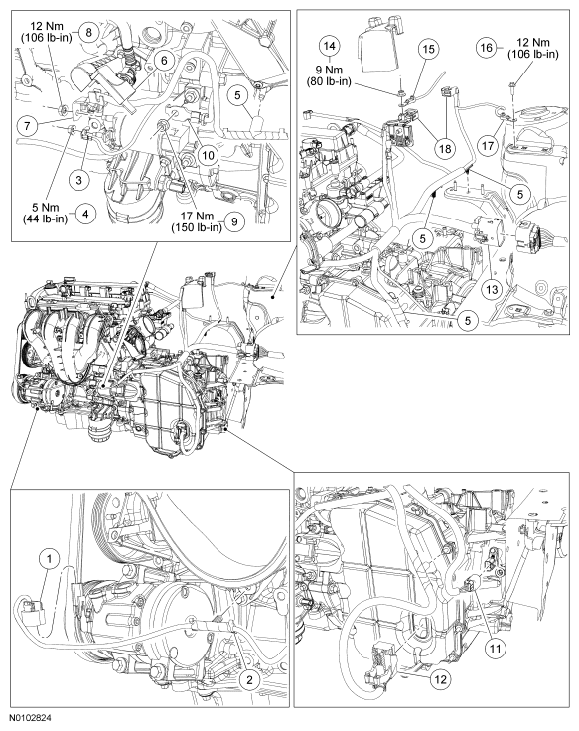

View 1 of 2
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | A/C compressor clutch field electrical connector (part of 14B060) |
| 2 | - | Wiring harness retainer (part of 14B060) |
| 3 | - | Starter motor solenoid wire terminal (part of 14B060) |
| 4 | W705790 | Starter motor solenoid wire terminal nut |
| 5 | - | Battery cable retainer (part of 14B060) |
| 6 | 11N087 | Starter solenoid terminal cover |
| 7 | - | Battery cable starter solenoid terminal (part of 14B060) |
| 8 | W706414 | Battery cable starter solenoid terminal nut |
| 9 | W520513 | Battery cable transaxle ground terminal nut |
| 10 | - | Battery cable transaxle ground terminal (part of 14B060) |
| 11 | - | Automatic transaxle turbine speed sensor connector (part of 14B060) |
| 12 | - | Automatic transaxle electrical connector (part of 14B060) |
| 13 | - | Battery cable in-line harness electrical connector (part of 14B060) |
| 14 | - | Battery Junction Box (BJB) cable terminal nut |
| 15 | - | BJB terminal |
| 16 | W705936 | Battery cable body ground terminal bolt |
| 17 | - | Battery cable body ground terminal (part of 14B060) |
| 18 | 14B060 | Battery cables |

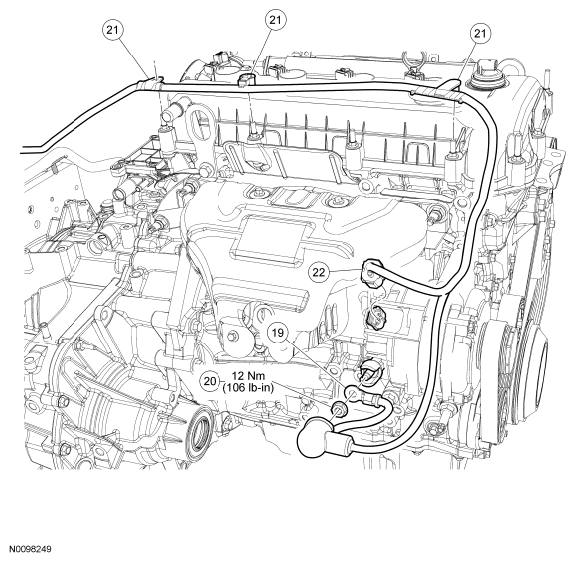

View 2 of 2
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 19 | - | Generator B+ terminal (part of 14B060) |
| 20 | W706414 | Generator B+ terminal nut |
| 21 | - | Battery cable locator (part of 14B060) |
| 22 | - | Generator electrical connector (part of 14B060) |
