Cylinder Head Temperature (CHT) Sensor
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

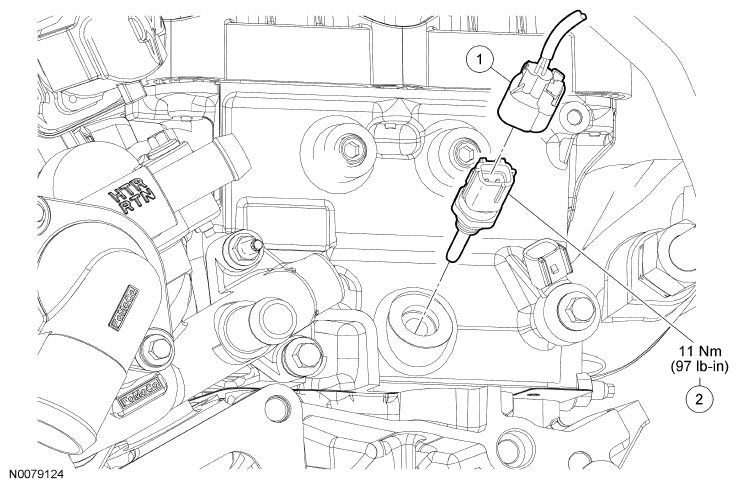

Fig 1: Identifying Cylinder Head Temperature (CHT) Sensor Replacement Components With Torque Specifications
PART NUMBER DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Cylinder Head Temperature (CHT) sensor electrical connector (part of 12C508) |
| 2 | 6G004 | CHT sensor |
NOTE:
If the cylinder head is being replaced, the Cylinder Head Temperature (CHT) sensor must be replaced.
- Remove the battery tray. For additional information, refer to REMOVAL AND INSTALLATION .
- Disconnect the CHT sensor electrical connector.
- Remove the CHT
sensor.
- To install, tighten to 11 Nm (97 lb-in).
- To install, reverse the removal procedure.
