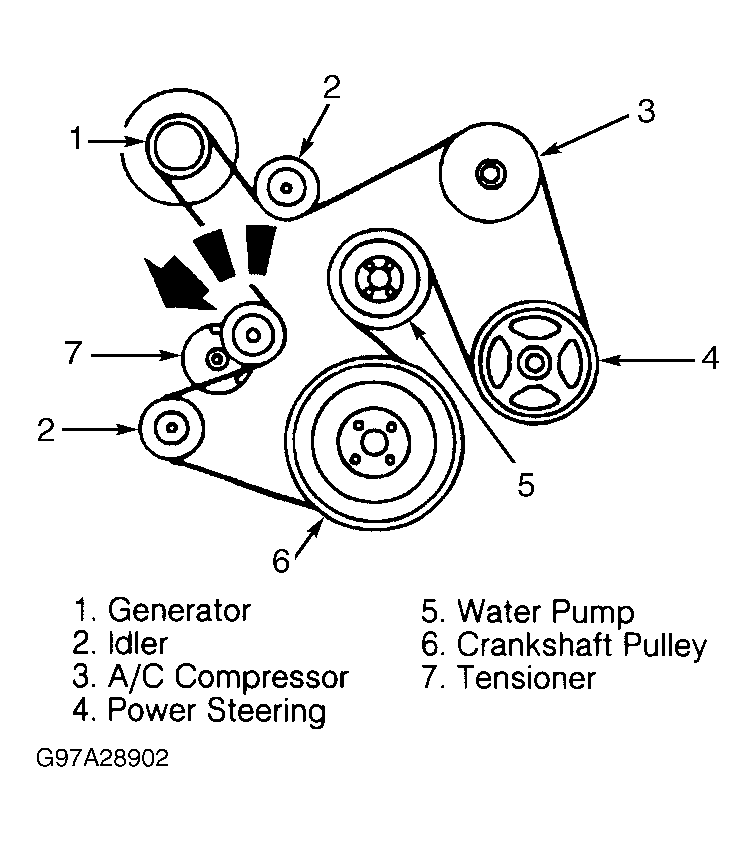

Fig 1: Checking Belt Routing (4.2L With A/C)
Courtesy of FORD MOTOR CO.

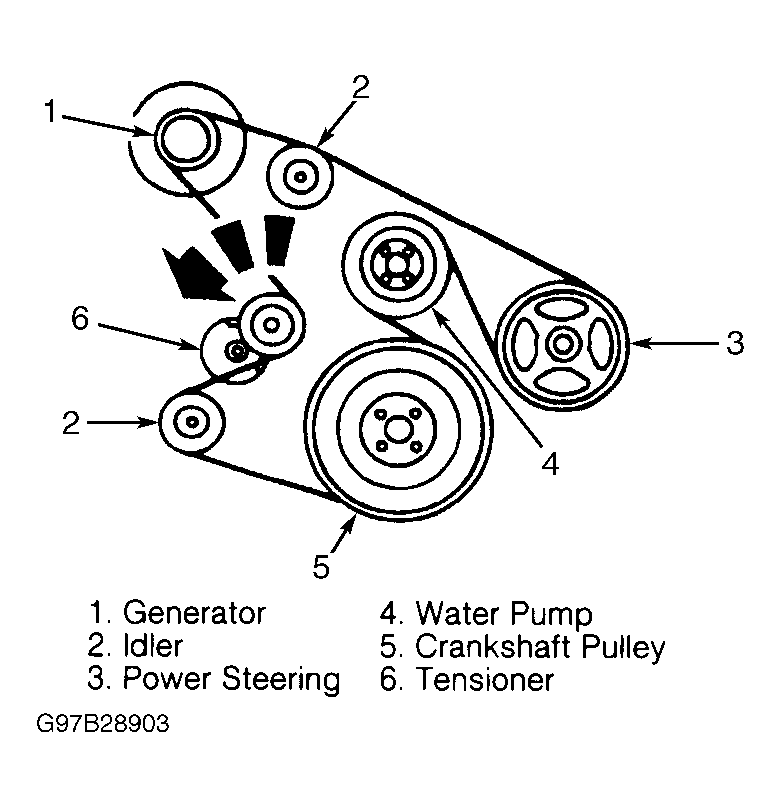

Fig 2: Checking Belt Routing (4.2L Without A/C)
Courtesy of FORD MOTOR CO.
Fig 3: Checking Belt Routing (4.6L, 5.4L & 6.8L Without A/C; Except E550 Without A/C)
Courtesy of FORD MOTOR CO.
Fig 4: Checking Belt Routing (4.6L, 5.4L & 6.8L With A/C)
Courtesy of FORD MOTOR CO.

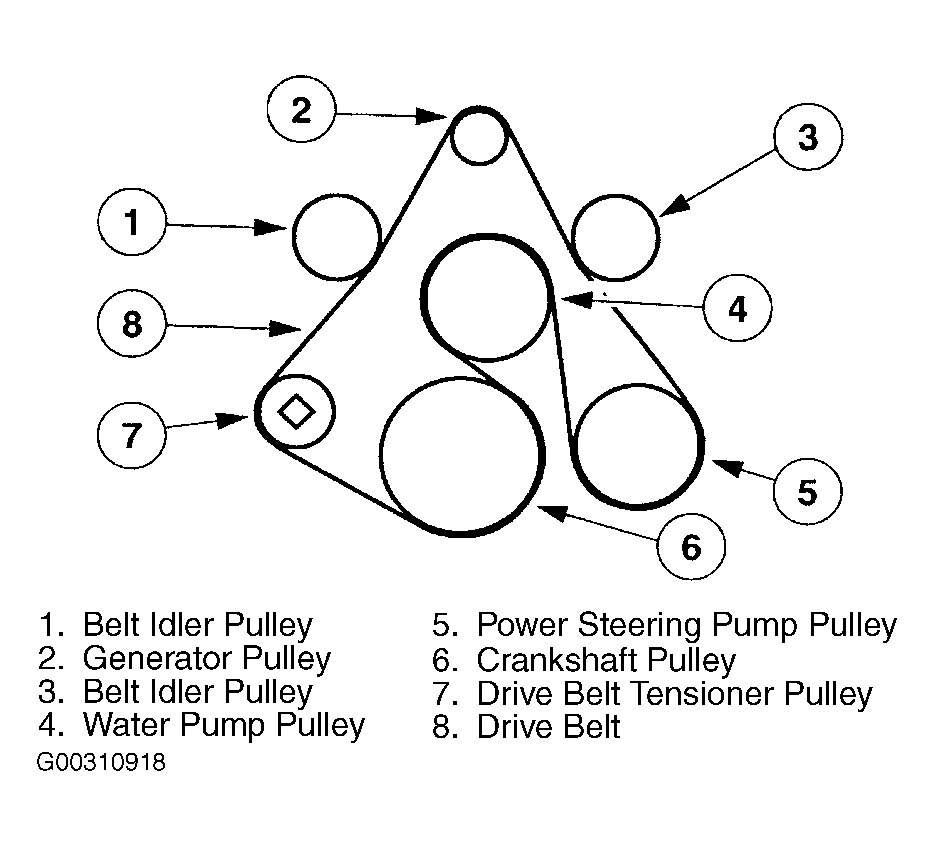

Fig 5: Checking Drive Belt Routing (E550 - 6.8L Without A/C)
Courtesy of FORD MOTOR CO.
Fig 6: Checking Belt Routing (7.3L Diesel With Single Generator)
Courtesy of FORD MOTOR CO.

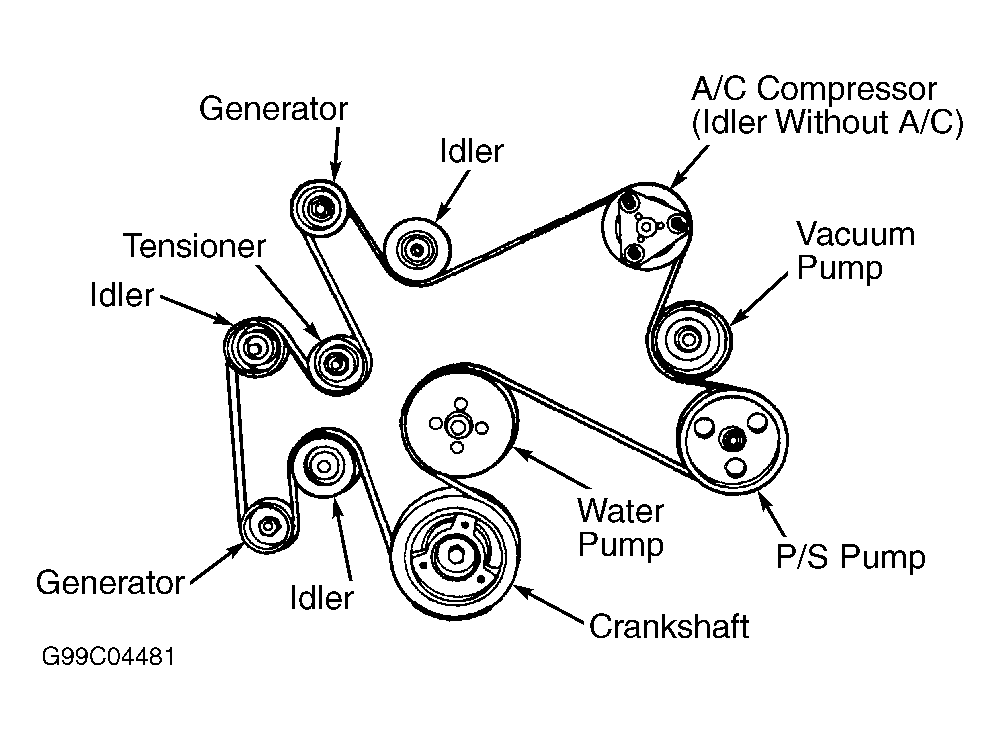

Fig 7: Checking Belt Routing (7.3L Diesel With Dual Generators)
