Brake Fluid Reservoir: Material
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) | WSS-M6C62-A or WSSM6C65-A1 |
2.5L Non-Hybrid
NOTE:
Automatic transmission shown in illustration, manual transmission similar.

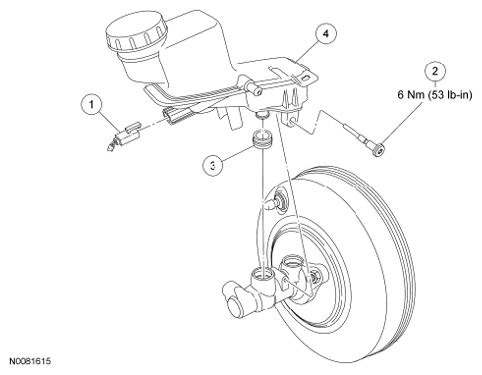

Fig 1: Identifying Brake Fluid Reservoir Replacement Components With Torque Specifications (2.5L Non-Hybrid)
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake fluid level warning switch electrical connector (part of 14290) |
| 2 | 2B176 | Brake fluid reservoir pin bolt |
| 3 | 2L074 | Brake fluid reservoir seal (2 required) |
| 4 | 2C246 | Brake fluid reservoir |
2.5L Hybrid, 3.0L and 3.5L

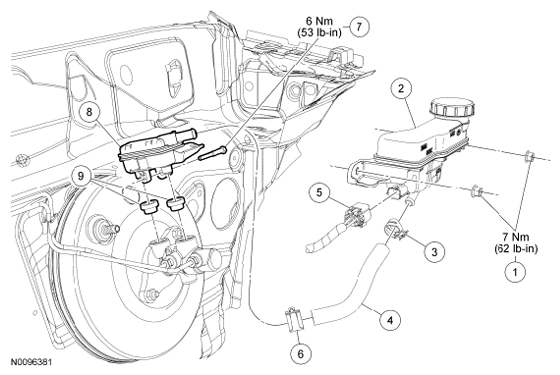

Fig 2: Identifying Brake Fluid Reservoir Replacement Components With Torque Specifications (2.5L Hybrid, 3.0L & 3.5L)
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W520111 | Brake fluid remote reservoir nuts (2 required) |
| 2 | 2K478 | Brake fluid remote reservoir |
| 3 | - | Spring clamp (part of 2K478) |
| 4 | - | Brake fluid reservoir hose (part of 2K478) |
| 5 | - | Brake fluid level warning switch electrical connector (part of 14290) |
| 6 | - | Spring clamp (part of 2K478) |
| 7 | 2B176 | Brake fluid reservoir pin bolt |
| 8 | 2K478 | Brake fluid reservoir |
| 9 | 2L074 | Brake fluid reservoir seals (2 required) |
