Front Brake Flexible Hose: Material
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM SPECIFICATION TABLE
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSSM6C65-A1 |

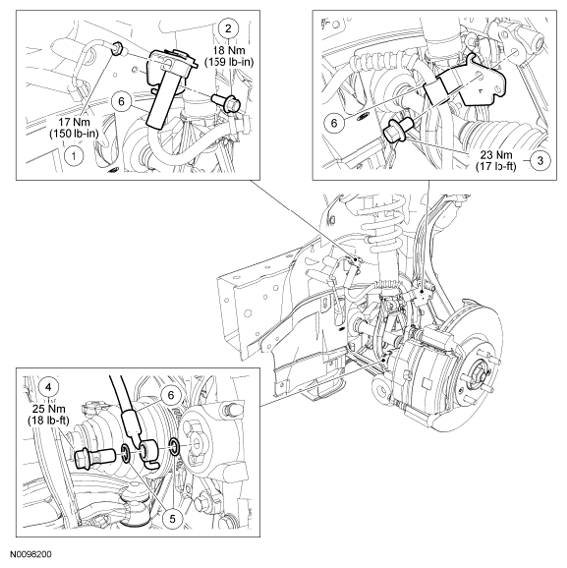

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake tube fitting (part of 2263 RH/2264 LH) |
| 2 | W505263 | Brake flexible hose bracket-to-body bolt |
| 3 | W500020 | Brake flexible hose bracket-to-wheel knuckle bolt |
| 4 | 2L122 | Brake caliper flow bolt |
| 5 | 2149 | Copper washers (2 required) |
| 6 | 2078 | Brake flexible hose |
