Intermediate Shaft - Front Wheel Drive (FWD): Notes

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

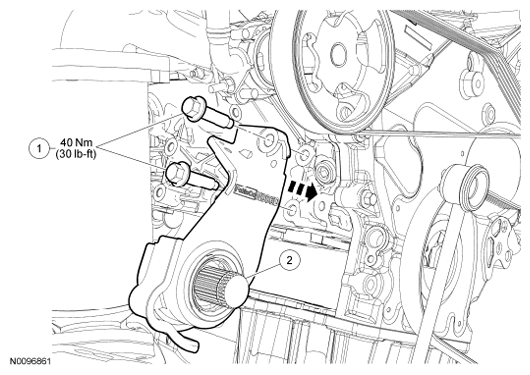

Fig 1: Intermediate Shaft Assembly & Halfshaft Support Bracket Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W500235	Halfshaft support bracket bolts (2 required)
2	3K183	Intermediate shaft assembly
