Intermediate Shaft - All Wheel Drive (AWD): Notes

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

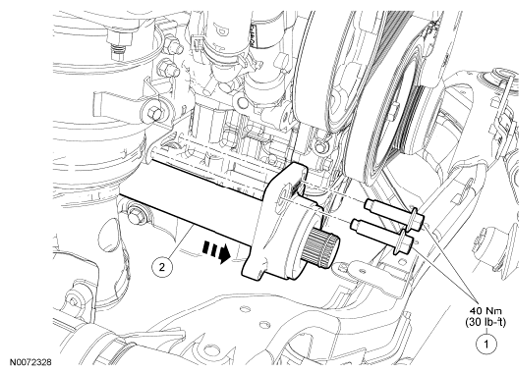

Fig 1: Intermediate Shaft Bearing Support Bolts & Intermediate Shaft Assembly With Torque Specifications
G06269590Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 W500235 Intermediate shaft bearing support bolts (2 required)
2 3K183 Intermediate shaft assembly
