Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
The Supplemental Restraint System (SRS) is designed to provide increased collision protection for front seat and second row outboard occupants, in addition to that provided by the 3-point safety belt system. Safety belt use is necessary to obtain the best occupant protection and to receive the full advantage of the SRS .
The serviceable air bag and safety belt pretensioner SRS components are shown in the following illustrations.

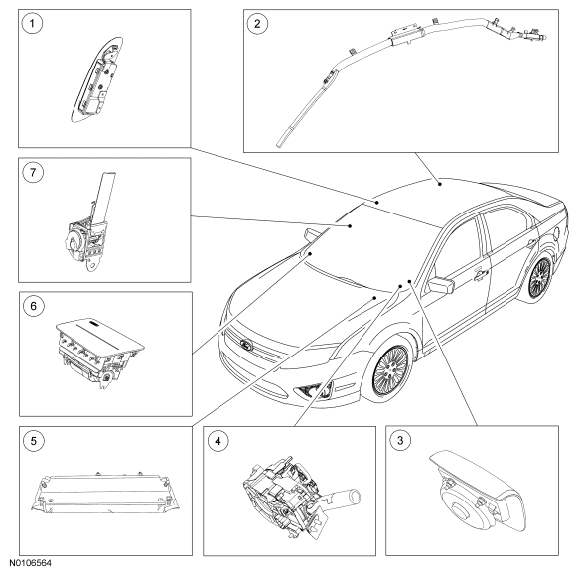

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (1 of 2)
Fig 1: Identifying Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (1 Of 2)
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 611D10 RH/611D11 LH | Seat side air bag module |
| 2 | 042D94 RH/042D95 LH | Side air curtain modules |
| 3 | 043B13 | Driver air bag module |
| 4 | 14A664 | Clockspring |
| 5 | 045J77 | Driver knee air bag module |
| 6 | 044A74 | Passenger air bag module assembly |
| 7 | 611B08 | RH/611B09 LH Safety belt retractor pretensioner |

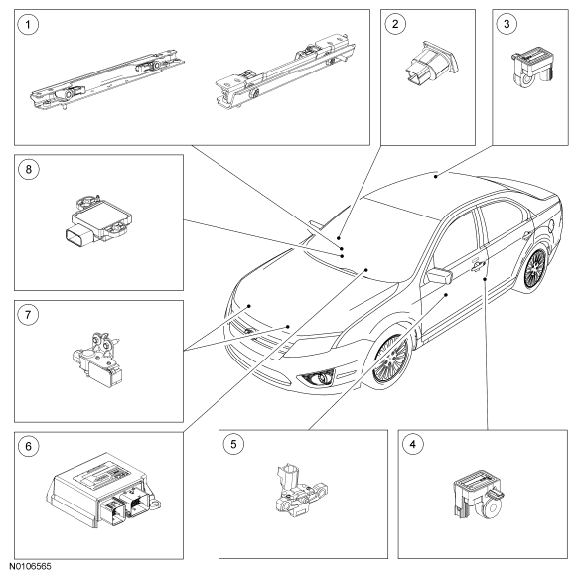

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (2 of 2)
Fig 2: Identifying Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (2 Of 2)
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 61708 RH/61709 LH | Occupant Classification Sensor (OCS) weight sensor assembly (2 required) |
| 2 | 13D734 | Passenger Air Bag Deactivation (PAD) indicator (Fusion/Milan) |
| 3 | 14B006 | Side impact sensor C-pillar |
| 4 | 14B345 | Side impact sensor B-pillar |
| 5 | 14B416 | Driver seat track position sensor |
| 6 | 14B321 | Restraints Control Module (RCM) |
| 7 | 14B006 | Front impact severity sensor (2 required) |
| 8 | 14B422 | Occupant Classification System Module (OCSM) |
