Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL REFERENCE TABLE
| Adapter for 204-592 204-592/1 | |
| Installer, Halfshaft 204-161 (T97P-1175-A) | |
| Remover, Front Hub 205-D070 (D93P-1175-B) or equivalent | |
| Remover, Steering Arm 211-003 (T64P-3590-F) | |
| Remover, Tie-Rod End 211-105 (T85M-3395-A) | |
| Separator, Ball Joint 204-592 |

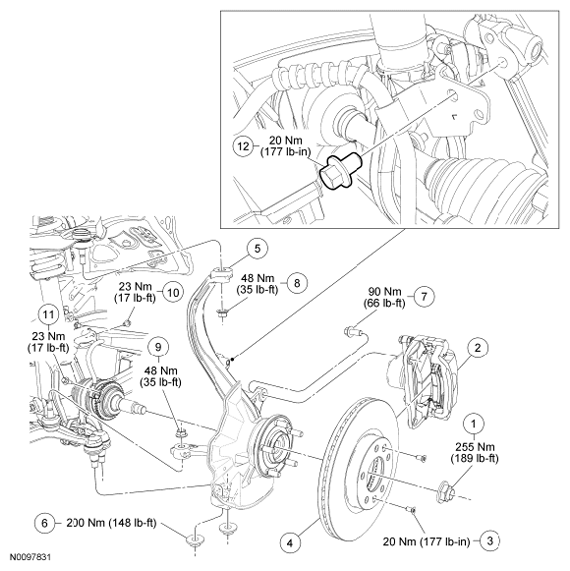

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 3N405 | Wheel hub nut |
| 2 | - | Brake caliper and anchor plate assembly |
| 3 | W505741 | Brake disc bolt (2 required) |
| 4 | 1032 | Brake disc |
| 5 | 3K171 LH/3K170 RH | Wheel knuckle |
| 6 | 3C499 | Lower ball joint nut (2 required) |
| 7 | W711241 | Brake caliper anchor plate bolt (2 required) |
| 8 | 3C498 | Upper ball joint nut |
| 9 | 3D000 | Tie-rod end nut |
| 10 | W500020 | Wheel speed sensor harness bolt |
| 11 | W500222 | Wheel speed sensor bolt |
| 12 | W505263 | Brake flexible hose bracket-to-wheel knuckle bolt |
