Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATION TABLE
| Adapter for 204-592 204-592/1 | |
| Separator, Ball Joint 204-592 |

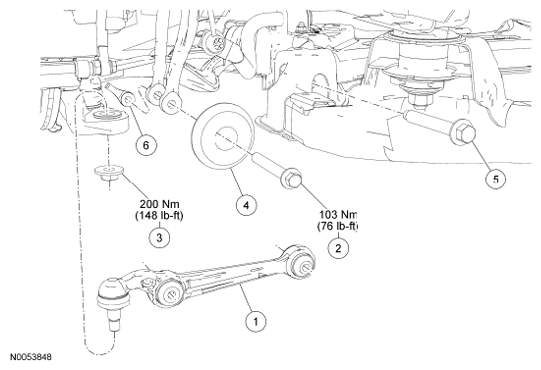

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 3A423 | Lower arm (front) |
| 2 | W500550 | Damper fork-to-lower arm bolt |
| 3 | 3C499 | Lower ball joint nut (front) |
| 4 | 3C156 | Damper |
| 5 | W712840 | Front lower arm-to-subframe bolt |
| 6 | 3C347 | Damper fork-to-lower arm flagnut |
