Front Wheel Drive (FWD) Vehicles
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

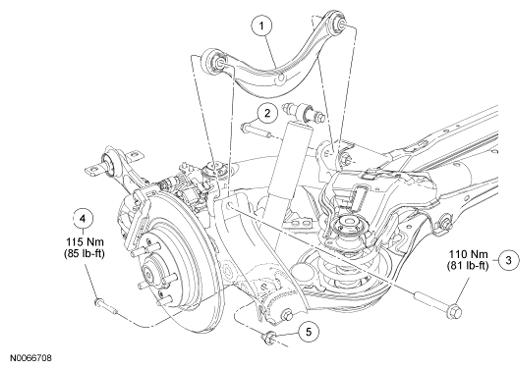

Fig 1: Identifying Upper Arm Replacement Components With Torque Specifications (Front Wheel Drive Vehicles)
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 5500 | Upper arm |
| 2 | W712769 | Upper arm inboard bolt |
| 3 | W500546 | Upper arm outboard bolt |
| 4 | W704586 | Shock absorber lower bolt |
| 5 | W302116 | Shock absorber lower flagnut |
