Front End Accessory Drive (FEAD) - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln MKZ and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

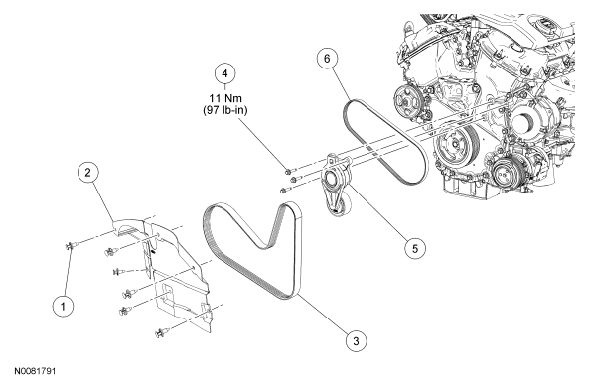

Fig 1: Exploded View Of Front End Accessory Drive (FEAD) Replacement Components With Torque Specifications
PART NUMBER DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | N807389 | Pin-type retainer (6 required) |
| 2 | 010204 | RH splash shield |
| 3 | 8620 | Accessory drive belt |
| 4 | W503278 | Accessory drive belt tensioner bolt (3 required) |
| 5 | 6B209 | Accessory drive belt tensioner |
| 6 | 6C301 | Power steering pump drive belt |
- For additional information, refer to the appropriate procedure(s).
