Front End Accessory Drive (FEAD) - Exploded View

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

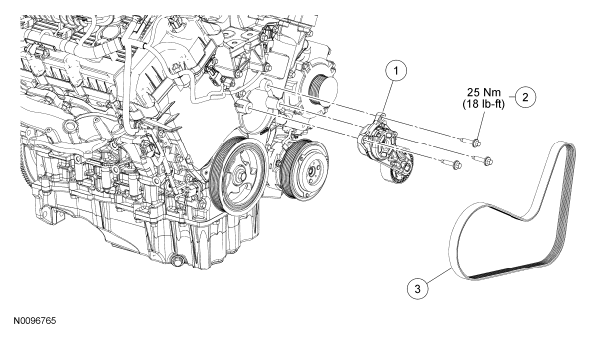

Fig 1: Front End Accessory Drive Belt Tensioner Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION TABLE

Item	Part Number	Description
1	6B209	Accessory drive belt tensioner
2	W503297	Accessory drive belt tensioner bolt (3 required)
3	8620	Accessory drive belt

For additional information, refer to the appropriate procedure(s).
