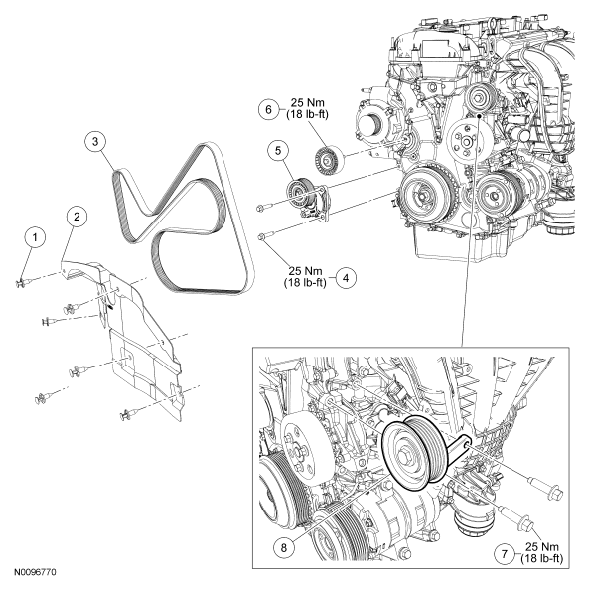

Front End Accessory Drive (FEAD) - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | N807389 | Pin-type retainer (6 required) |
| 2 | 010204 | RH splash shield |
| 3 | 8620 | Accessory drive belt |
| 4 | W500314 | Accessory drive belt tensioner bolt (2 required) |
| 5 | 6A228 | Accessory drive belt tensioner |
| 6 | 19A216 | Accessory drive belt idler pulley (smooth) |
| 7 | W500225 | Accessory drive belt idler pulley and bracket bolt (2 required) |
| 8 | 19A216 | Accessory drive belt idler pulley (grooved) and bracket |
- For additional information, refer to the appropriate procedure(s).
