Turbine Shaft Speed (TSS) Sensor: Material
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item |
Specification |
Motorcraft® MERCON® LV Automatic
Transmission Fluid
XT-10-QLV |
MERCON® LV |

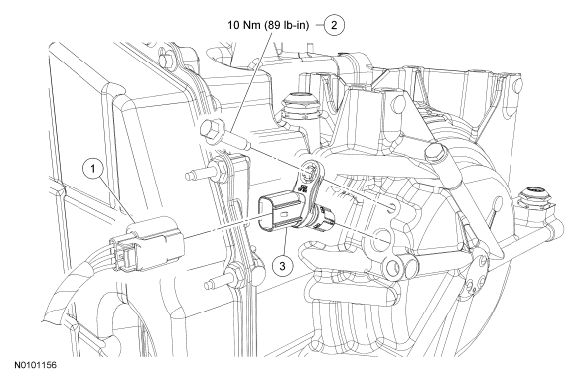

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
14A464 |
Turbine Shaft Speed (TSS) sensor electrical connector |
| 2 |
W500214 |
TSS
sensor bolt |
| 3 |
7M101 |
TSS
sensor |
