Solenoid Body Leadframe: Material
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLV |
MERCON® LV |
| Ultra Silicone Sealant TA-29 |
- |

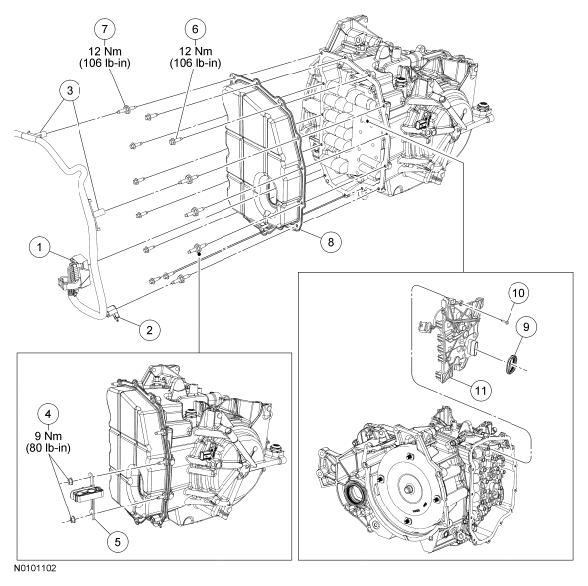

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Transaxle main harness electrical connector |
| 2 | 9S318 | Wiring harness retainer |
| 3 | 14A163 | Wiring harness retainer |
| 4 | N805320 | Transmission fluid cooler tube nuts |
| 5 | 7H420 | Transmission fluid cooler tube bracket |
| 6 | W500213 | Main control cover bolts |
| 7 | W705619 | Main control cover studbolts |
| 8 | 7G004 | Main control cover |
| 9 | 7B329 | Main control-to-cover seal |
| 10 | W505513 | Main control leadframe screw (5 required) |
| 11 | 7G276 | Main control leadframe |
