Special Tool(s)

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL CHART

Courtesy of FORD MOTOR CO.	Handle, Torque Converter 307-091 (T81P-7902-C)
Courtesy of FORD MOTOR CO.	Holding Fixture 307-625
Courtesy of FORD MOTOR CO.	Remover, Roll Pin 211-061 (T78P-3504-N1)
Courtesy of FORD MOTOR CO.	Retainer, Torque Converter 307-566

Install the Holding Fixture 307-625.

Fig 1: Identifying Holding Fixture 307-625
Courtesy of FORD MOTOR CO.
Using the Holding Fixture 307-625, install the transaxle on a bench-mounted holding fixture.

Fig 2: Identifying Transaxle On Bench-Mounted Holding Fixture
Courtesy of FORD MOTOR CO.
Remove the Torque Converter Retainer 307-566.

Fig 3: Identifying Torque Converter Retainer 307-566
Courtesy of FORD MOTOR CO.
Install the Torque Converter Handle 307-091.

Fig 4: Identifying Torque Converter Handle 307-091
Courtesy of FORD MOTOR CO.
NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

Using Torque Converter Handle 307-091, remove the torque converter from the transaxle.

Fig 5: Removing Torque Converter From Transaxle Using Torque Converter Handle 307-091
Courtesy of FORD MOTOR CO.
NOTE: Note the location of the stud bolts for assembly.

Remove the 13 bolts and the main control cover.

Fig 6: Locating Bolts And Main Control Cover
Courtesy of FORD MOTOR CO.
Disconnect the Output Shaft Speed (OSS) sensor electrical connector.

Fig 7: Identifying Output Shaft Speed (OSS) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the Transmission Range (TR) sensor electrical connector.

Fig 8: Locating Transmission Range (TR) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the solenoid body-to-main control cover grommet.

Fig 9: Locating Solenoid Body-To-Main Control Cover Grommet
Courtesy of FORD MOTOR CO.
NOTE: Note the location of the short and long main control bolts for reassembly.

Remove the nut and the 22 Torx bolts and remove the main control assembly.

Fig 10: Locating TORX Bolts
Courtesy of FORD MOTOR CO.
Remove the main control-to-transaxle case separator plate.

Fig 11: Locating Main Control-To-Transaxle Case Separator Plate
Courtesy of FORD MOTOR CO.
Remove the forward (1, 2, 3, 4) clutch and low/reverse clutch transaxle case-to-center support seals.
1. Forward (1, 2, 3, 4) clutch transaxle case-to-center support seal.
2. Low/reverse clutch transaxle case-to-center support seal.
Fig 12: Identifying Low/Reverse Clutch Transaxle Case-To-Center Support Seal
Courtesy of FORD MOTOR CO.

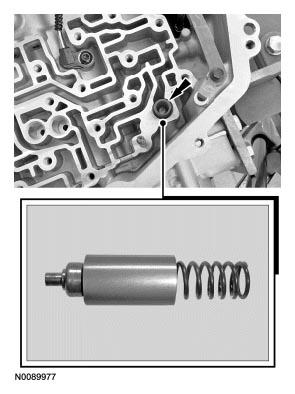

Remove the internal cooler bypass spring, sleeve and valve.

Fig 13: Identifying Internal Cooler Bypass Spring, Sleeve And Valve
Courtesy of FORD MOTOR CO.
Remove the bolt and the Turbine Shaft Speed (TSS) sensor.

Fig 14: Locating Bolt And Turbine Shaft Speed (TSS) Sensor
Courtesy of FORD MOTOR CO.
Remove the bolt and the TR sensor detent spring.

Fig 15: Locating Bolt And TR Sensor Detent Spring
Courtesy of FORD MOTOR CO.
Remove the bolt and the OSS sensor.

Fig 16: Locating Bolt And OSS Sensor
Courtesy of FORD MOTOR CO.
NOTE: Note the location of the stud bolts for assembly.

Remove the 17 torque converter housing bolts.

Fig 17: Locating Torque Converter Housing Bolts
Courtesy of FORD MOTOR CO.

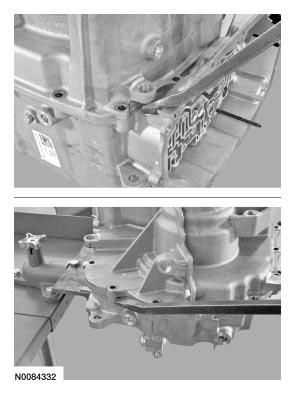

Using a suitable tool, pry the torque converter housing loose from the transaxle case.

Fig 18: Prying Torque Converter Housing
Courtesy of FORD MOTOR CO.
Remove the torque converter housing loose from the transaxle case.

Fig 19: Locating Torque Converter Housing
Courtesy of FORD MOTOR CO.
Remove the No. 15 differential thrust bearing.

Fig 20: Removing No. 15 Differential Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the differential.

Fig 21: Removing Differential
Courtesy of FORD MOTOR CO.
Remove the differential planetary sun gear.

Fig 22: Removing Differential Planetary Sun Gear
Courtesy of FORD MOTOR CO.
Remove the No. 13 thrust washer.

Fig 23: Identifying No. 13 Thrust Washer
Courtesy of FORD MOTOR CO.
Remove the No. 11 drive sprocket thrust bearing.

Fig 24: Removing No. 11 Drive Sprocket Thrust Bearing
Courtesy of FORD MOTOR CO.
Simultaneously remove the drive and driven sprockets and the chain.

Fig 25: Removing Drive And Driven Sprockets And Chain
Courtesy of FORD MOTOR CO.
Remove the No. 12 driven sprocket thrust bearing.

Fig 26: Locating No. 12 Driven Sprocket Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the No. 10 front sun gear and shell assembly thrust bearing.

Fig 27: Locating No. 10 Front Sun Gear And Shell Assembly Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the 2 bolts and the transmission fluid reservoir hold-down bracket.

Fig 28: Locating Bolts And Transmission Fluid Reservoir Hold-Down Bracket
Courtesy of FORD MOTOR CO.
Remove the transmission fluid reservoir.

Fig 29: Locating Transmission Fluid Reservoir
Courtesy of FORD MOTOR CO.
Remove the transmission fluid baffle.

Fig 30: Locating Transmission Fluid Baffle
Courtesy of FORD MOTOR CO.
Remove the park pawl pin and spring.

Fig 31: Removing Park Pawl Pin And Spring
Courtesy of FORD MOTOR CO.
Remove the park pawl.

Fig 32: Locating Park Pawl
Courtesy of FORD MOTOR CO.

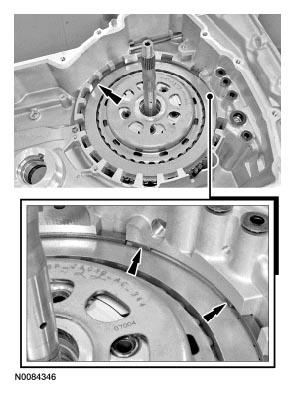

NOTE: The forward (1, 2, 3, 4) clutch snap ring is beveled. The beveled side of the snap ring goes up (flat side down).

NOTE: The forward (1, 2, 3, 4) clutch snap ring gap faces the front of the transmission.

Remove the forward (1, 2, 3, 4) clutch snap ring.

Fig 33: Locating Forward (1, 2, 3, 4) Clutch Snap Ring
Courtesy of FORD MOTOR CO.
Remove the forward (1, 2, 3, 4) clutch pressure plate, clutch assembly and wave spring.

Fig 34: Identifying Forward (1, 2, 3, 4) Clutch Pressure Plate, Clutch Assembly And Wave Spring
Courtesy of FORD MOTOR CO.
Remove the front sun gear and shell assembly.

Fig 35: Locating Front Sun Gear And Shell Assembly
Courtesy of FORD MOTOR CO.
Remove the front planetary carrier/rear ring gear assembly.

Fig 36: Locating Front Planetary Carrier/Rear Ring Gear Assembly
Courtesy of FORD MOTOR CO.
Remove the No. 7 and No. 8 thrust bearings.
1. No. 7 thrust bearing
2. No. 8 thrust bearing
Fig 37: Identifying No. 7 And No. 8 Thrust Bearings
Courtesy of FORD MOTOR CO.
Remove the center planetary carrier/front ring gear assembly.

Fig 38: Locating Center Carrier/Front Ring Gear Assembly
Courtesy of FORD MOTOR CO.
Remove the center planetary sun gear.

Fig 39: Locating Center Planetary Sun Gear
Courtesy of FORD MOTOR CO.
Remove the No. 5 and No. 6 thrust bearings.
1. No. 5 thrust bearing
2. No. 6 thrust bearing
Fig 40: Identifying No. 5 And No. 6 Thrust Bearings
Courtesy of FORD MOTOR CO.
Remove the center support assembly.

Fig 41: Locating Center Support Assembly
Courtesy of FORD MOTOR CO.
Remove the rear planetary carrier/center ring gear assembly.

Fig 42: Locating Rear Planetary Carrier/Center Ring Gear Assembly
Courtesy of FORD MOTOR CO.

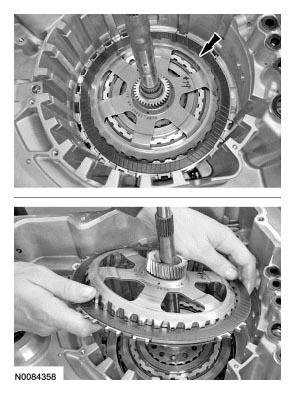

Remove the low/reverse wave spring, clutch pack and pressure plate.

Fig 43: Locating Low/Reverse Wave Spring, Clutch Pack And Pressure Plate
Courtesy of FORD MOTOR CO.
Remove the low One-Way Clutch (OWC).

Fig 44: Locating Low One-Way Clutch (OWC)
Courtesy of FORD MOTOR CO.
NOTE: The intermediate (2, 6) clutch is removed with the rear planetary sun gear and shell assembly.

Remove the rear planetary sun gear and shell assembly and remove the intermediate (2, 6) clutch from the assembly.

Fig 45: Removing Rear Planetary Sun Gear And Shell Assembly
Courtesy of FORD MOTOR CO.
Remove the pressure plate and the wave spring.

Fig 46: Locating Pressure Plate And Wave Spring
Courtesy of FORD MOTOR CO.
Remove the No. 3 thrust bearing.

Fig 47: Locating No. 3 Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the overdrive/direct clutch assembly.

Fig 48: Locating Overdrive/Direct Clutch Assembly
Courtesy of FORD MOTOR CO.

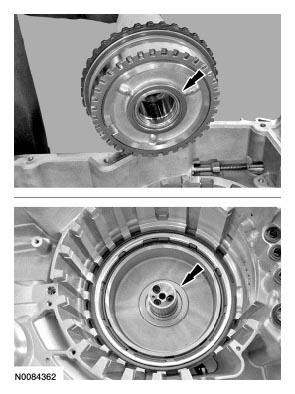

NOTE: If the No. 1 thrust bearing stuck to the overdrive/direct clutch assembly, remove the No. 1 thrust bearing from the overdrive/direct clutch assembly.

Remove the No. 1 thrust bearing.

Fig 49: Locating No. 1 Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the intermediate (2, 6) clutch apply ring.

Fig 50: Locating Intermediate (2, 6) Clutch Apply Ring
Courtesy of FORD MOTOR CO.
Remove the 3 bolts and the clutch support tower.

Fig 51: Locating Bolts And Clutch Support Tower
Courtesy of FORD MOTOR CO.

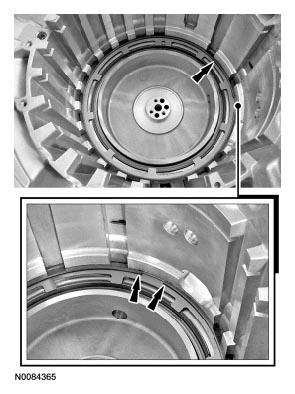

NOTE: Note the location of the snap ring gap for assembly.

Remove the intermediate (2, 6) clutch return spring snap ring.

Fig 52: Locating Intermediate (2, 6) Clutch Return Spring Snap Ring
Courtesy of FORD MOTOR CO.
NOTE: Note the position of the return spring for assembly.

Remove the intermediate (2, 6) clutch return spring.

Fig 53: Locating Intermediate (2, 6) Clutch Return Spring
Courtesy of FORD MOTOR CO.

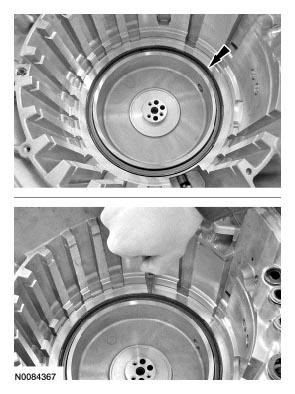

NOTE: Note the position of the intermediate clutch piston for assembly.

Remove the intermediate (2, 6) clutch piston.

Fig 54: Removing Intermediate (2, 6) Clutch Piston
Courtesy of FORD MOTOR CO.
Remove the 5 clutch feed seals.

Fig 55: Locating Clutch Feed Seals
Courtesy of FORD MOTOR CO.
Remove the nut and the manual lever from the manual shaft.

Fig 56: Locating Manual Lever And Nut
Courtesy of FORD MOTOR CO.
NOTE: Do not drive the roll pin through the manual shaft. The roll pin will contact the transaxle case causing damage to the transaxle case.

Using Roll Pin Remover 211-061, pull the roll pin out of the manual shaft.

Fig 57: Removing Roll Pin Out Of Manual Shaft Using Roll Pin Remover 211-061
Courtesy of FORD MOTOR CO.
Remove the manual shaft.

Fig 58: Removing Manual Shaft
Courtesy of FORD MOTOR CO.

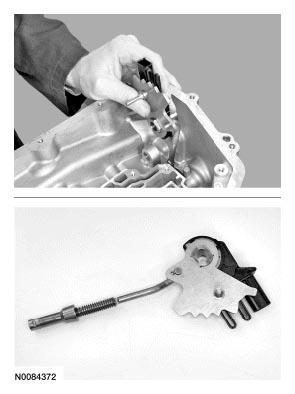

Remove the TR sensor and the park pawl actuator rod and remove the park pawl actuator rod from the TR sensor.

Fig 59: Removing TR Sensor And Park Pawl Actuator Rod
Courtesy of FORD MOTOR CO.
Using a suitable tool, remove the manual shaft seal.

Fig 60: Removing Manual Shaft Seal Using Suitable Tool
Courtesy of FORD MOTOR CO.
Using a suitable tool, remove the LH halfshaft seal.

Fig 61: Removing LH Half Shaft Seal Using Suitable Tool
Courtesy of FORD MOTOR CO.
Remove the 2 bolts and the oil baffle from the torque converter housing.

Fig 62: Locating Bolts And Oil Baffle
Courtesy of FORD MOTOR CO.
NOTE: Note the location of the 6-mm bolt for assembly.

Remove the 9 bolts and the pump and filter assembly.

Fig 63: Locating Bolts, Pump And Filter Assembly
Courtesy of FORD MOTOR CO.
Remove the differential ring gear snap ring.

Fig 64: Locating Differential Ring Gear Snap Ring
Courtesy of FORD MOTOR CO.
Remove the differential ring gear.

Fig 65: Installing Differential Ring Gear
Courtesy of FORD MOTOR CO.
Using a suitable tool, remove the RH halfshaft seal.

Fig 66: Removing RH Halfshaft Seal
Courtesy of FORD MOTOR CO.
