Final Drive Carrier and Differential Assembly: Disassembly

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable tool, drive the roll pin out of the differential. Discard the roll pin.
    Fig 1: Driving Roll Pin Out Of Differential
    G06278751Courtesy of FORD MOTOR CO.
  2. Remove the differential pin.
    Fig 2: Removing Differential Pin
    G06278752Courtesy of FORD MOTOR CO.
  3. NOTE: Do not mix up the washers from the side or spider gears that they were originally assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.

    Rotate the side gears along with the spider gears and remove the side gears and the spider gears.

    1. Side gear
    2. Spider gear
    Fig 3: Rotating Side Gears
    G06278753Courtesy of FORD MOTOR CO.
  4. Remove the washers from the side and spider gears, but keep the washers with the gear that it was originally assembled with.

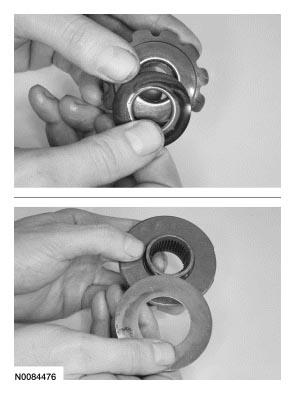

Fig 4: Identifying Washers And Spider Gears
G06278754Courtesy of FORD MOTOR CO.
