Intermediate (2, 6) Clutch
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
The intermediate clutch is a brake clutch that holds the rear planetary sun gear and shell assembly. The intermediate clutch is applied in 2nd and 6th gears.
Hydraulic pressure from the regulator valve in the valve body pushes the intermediate clutch piston against the intermediate clutch pack to apply the clutch. The low OWC works as a pressure plate for the intermediate (2, 6) clutch. The rear planetary sun gear and shell assembly is held stationary to the transaxle case as a result of the clutch being applied.

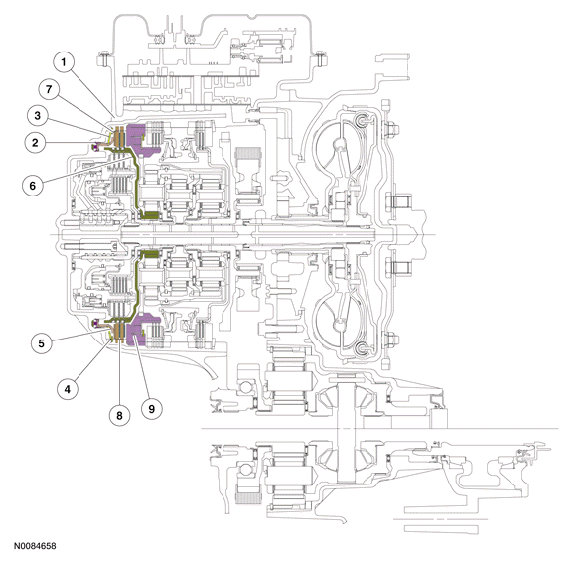

Intermediate (2, 6) Clutch Cutaway View

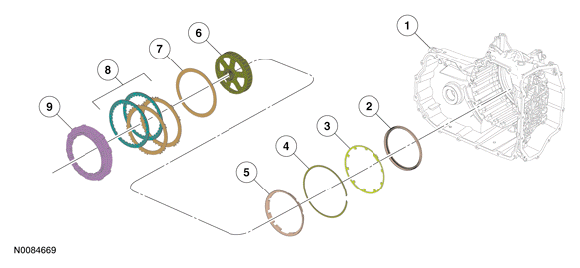

Intermediate (2, 6) Clutch Exploded View
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7005 | Transaxle case |
| 2 | 7E005 | Intermediate clutch piston |
| 3 | 7B070 | Intermediate clutch piston return spring |
| 4 | 7D483 | Intermediate clutch piston return spring snap ring |
| 5 | 7E005 | Intermediate clutch apply ring |
| 6 | 7A019 | Rear planetary sun gear and shell assembly |
| 7 | 7E085 | Intermediate clutch wave spring |
| 8 | 7B164 | Intermediate clutch assembly |
| 9 | 7A089 | Low/One-Way Clutch (OWC) |
