Front Planetary Carrier Hub (Output Hub)
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
The front planetary carrier hub/park gear is splined to the front planetary carrier and the drive chain drive sprocket. This allows torque to be transferred from the planetary gearset to the final drive gearset.

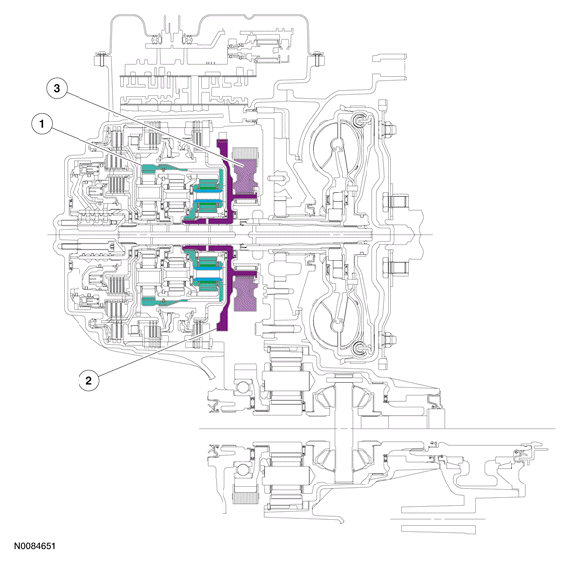

Front Planetary Carrier Hub Cutaway View
Front Planetary Carrier Hub Exploded View
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D491 | Front planetary carrier |
| 2 | 7060 | Front planetary carrier hub/park gear |
| 3 | 7G132 | Drive chain drive sprocket |
