Forward (1, 2, 3, 4) Clutch
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
The forward clutch is a brake clutch that holds the front sun gear and shell assembly. The forward clutch is applied in 1st, 2nd, 3rd and 4th gears.
Hydraulic pressure from the regulator valve in the valve body pushes the forward clutch piston against the forward clutch pack to apply the clutch. The front sun gear and shell assembly is held stationary to the transaxle case as a result of the clutch being applied.

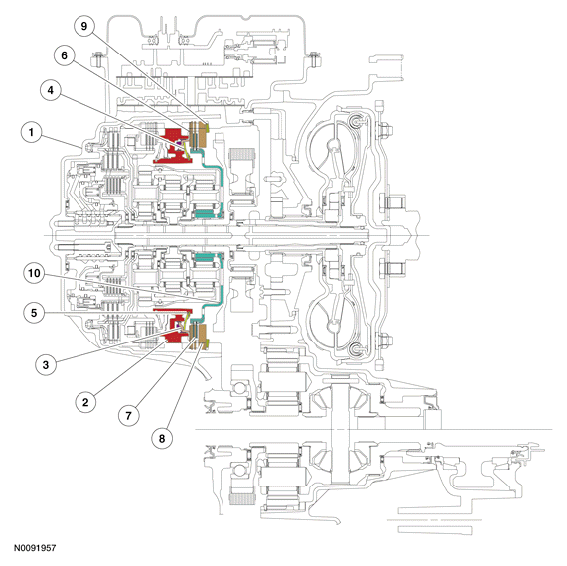

Forward (1, 2, 3, 4) Clutch Cutaway View

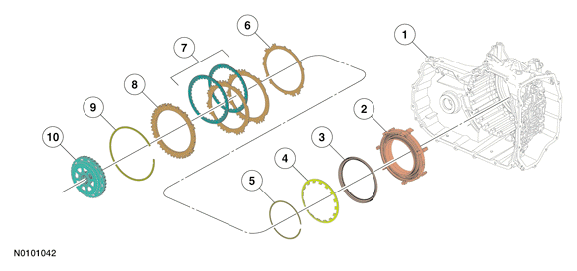

Forward (1, 2, 3, 4) Clutch Exploded View
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7005 | Transaxle case |
| 2 | 7L328 | Center support |
| 3 | 7A262 | Forward clutch piston |
| 4 | 7B070 | Forward clutch piston return spring |
| 5 | 7H365 | Forward clutch piston return spring snap ring |
| 6 | 7B070 | Forward clutch wave spring |
| 7 | 7B164 | Forward (1, 2, 3, 4) clutch |
| 8 | 7B066 | Forward clutch pressure plate |
| 9 | 7D483 | Forward clutch snap ring |
| 10 | 7A019 | Front sun gear and shell assembly |
