Engine Front

WARNING: This page is about a different car, the 2010 Lincoln MKZ and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Early build engine shown in illustration, late build similar.

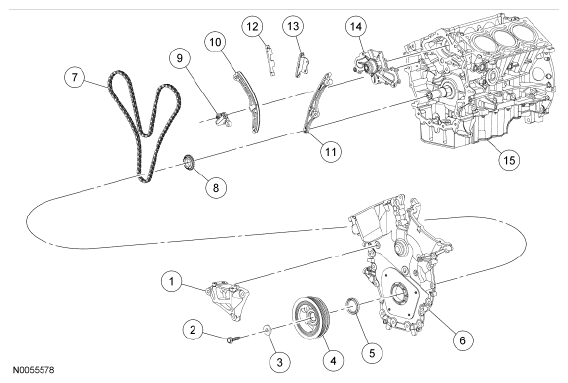

Fig 1: Identifying Engine Components - Front

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION TABLE

Item	Part Number	Description
1	6A0003	Engine mount bracket
2	W701512	Crankshaft pulley bolt
3	N806165	Crankshaft pulley washer
4	6316	Crankshaft pulley
5	6700	Crankshaft front seal
6	6C086	Engine front cover
7	6268	Timing chain
8	6306	Crankshaft timing sprocket
9	6K254	Primary timing chain tensioner
10	6K255	Primary timing chain tensioner arm
11	6B274	LH lower primary timing chain guide
12	6M256	RH primary timing chain guide (early build engines)
13	6K297	LH upper primary timing chain guide
14	8501	Coolant pump
15	6010	Cylinder block
